Document Understander

Quick Start

To get started:

• Choose a trained model from the Model to use dropdown
• Select Output Type: Collated Fields (structured) or Uncollated Fields (raw labels)
• Send document image via msg.payload.image_path
• Optionally provide OCR data via msg.payload.words_and_bboxes
• Receive extracted fields in msg.payload

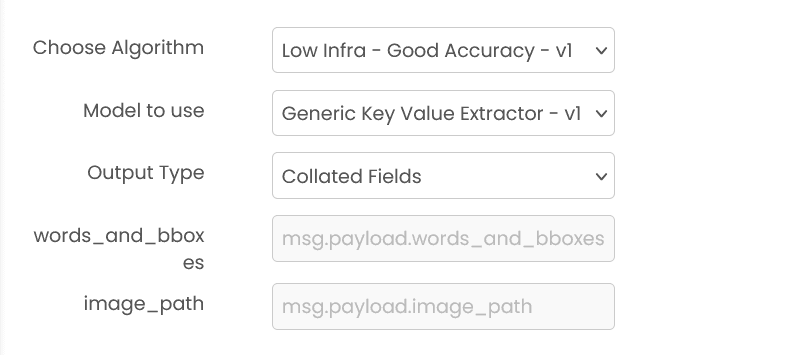

Configuration

Model to use (required)

Select a pre-trained model from the dropdown menu. Models must be trained beforehand using the sequence labeler trainer block.

Output Type (required)

Choose how extracted fields should be formatted:

• Collated Fields: Returns structured field-value pairs with coordinates and confidence scores
• Uncollated Fields: Returns raw word-level labels with individual bounding boxes

Common Input Format (All Algorithms)

msg.payload.image_path (string)

Relative path of the document image file on shared storage.

Example: "documents/invoice.png"

Supported formats: .png, .jpg, .jpeg (case insensitive)

msg.payload.words_and_bboxes (array, optional)

Optional OCR data containing words and bounding boxes. Can improve extraction accuracy.

Format: [[[x1, y1, x2, y2], "word"], ...]

Example: [[[100, 100, 300, 150], "Invoice"], [[100, 200, 200, 250], "Total"]]

Output by Output Type

Collated Fields

msg.payload contains an output array of field objects:

{
  "output": [
    {
      "field_name": "invoice_number",
      "co_ordinate": [470, 100, 180, 50],
      "field_value": "INV-001",
      "confidence_score": null
    },
    {
      "field_name": "total_amount",
      "co_ordinate": [220, 200, 130, 50],
      "field_value": "$500.00",
      "confidence_score": null
    }
  ]
}

Note: co_ordinate is in [x, y, width, height] format. confidence_score is currently not computed.

Uncollated Fields

msg.payload contains word-level data:

{
  "words": ["Invoice", "Number:", "INV-001", "Total:", "$500.00"],
  "normalized_bboxes": [[...], [...], ...],
  "unormalized_bboxes": [
    [100, 100, 300, 150],
    [320, 100, 450, 150],
    [470, 100, 650, 150],
    [100, 200, 200, 250],
    [220, 200, 350, 250]
  ],
  "labels": ["other", "other", "invoice_number", "other", "total_amount"]
}

Example

Input (msg.payload)

{
  "image_path": "documents/invoice.png",
  "words_and_bboxes": [
    [[100, 100, 300, 150], "Invoice"],
    [[470, 100, 650, 150], "INV-001"]
  ]
}

Output (msg.payload)

{
  "output": [
    {
      "field_name": "invoice_number",
      "co_ordinate": [470, 100, 180, 50],
      "field_value": "INV-001",
      "confidence_score": null
    }
  ]
}

Errors

When the block fails, it raises an error. Use a Catch block in your flow to handle failures and inspect the error payload.

Common mistakes

• Missing image path: msg.payload.image_path is required and must point to a file on shared storage.
• Wrong OCR structure: If provided, msg.payload.words_and_bboxes must follow [[[x1, y1, x2, y2], "word"], ...].
• Wrong output type: Use Collated Fields for structured field-value pairs, and Uncollated Fields for raw labels.

Best Practices

• Use clear, well-scanned document images for better field extraction accuracy
• Provide OCR data (words_and_bboxes) whenever available to improve extraction results
• Use Collated Fields for most use cases as it provides structured, ready-to-use field-value pairs
• Use Uncollated Fields when you need raw word-level labels or want to implement custom collation logic
• Ensure your training data includes diverse examples of each field type you want to extract
• Regularly retrain models as document layouts or field types evolve
• Always validate extracted fields in production applications, especially for critical data
