Document Question Answering

Quick Start

To get started:

• Choose a model option from the dropdown (output shape depends on the option)
• Choose a trained model from the Model to use dropdown
• Send document image via msg.payload.image_path
• Send questions via msg.payload.questions (array of strings)
• Optionally provide OCR data via msg.payload.words_and_bboxes
• Receive answers in msg.payload

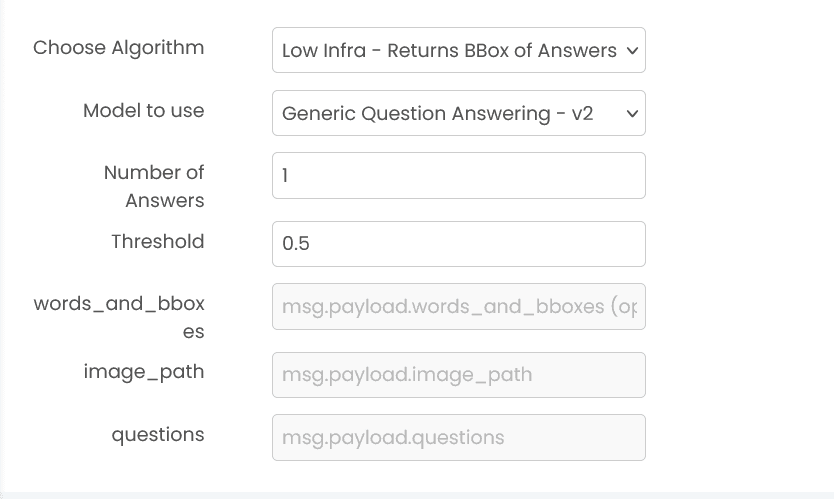

Configuration

Model to use (required)

Select a pre-trained model from the dropdown menu. Models must be trained beforehand using the document question answering trainer block.

Number of Answers (optional)

Number of answers to return per question. Default: 1

Example: 1, 3, 5

Threshold (optional, for some algorithms)

Confidence threshold (0 to 1) for filtering answers. Default: 0.5

Note: Lower values return more answers with potentially lower confidence

Common Input Format (All Algorithms)

msg.payload.image_path (string)

Relative path of the document image file on shared storage.

Example: "documents/invoice.png"

Supported formats: .png, .jpg, .jpeg (case insensitive)

msg.payload.questions (array)

Array of questions to ask about the document.

Example: ["What is the invoice number?", "What is the total amount?"]

msg.payload.words_and_bboxes (array, optional for some algorithms)

Optional OCR data containing words and bounding boxes. Can improve accuracy.

Format: [[[x1, y1, x2, y2], "word"], ...]

Example: [[[29, 23, 150, 45], "Invoice"], [[29, 50, 200, 70], "INV-001"]]

Low Infra - Returns BBox of Answers

Use this mode when you need the answer and its bounding box (for highlighting, validation, or UI overlays).

Output shape (high level):

• msg.payload = { "output": { "question": [ { "answer": "...", "score": 0.92, "bbox": [x1, y1, x2, y2] } ] } }

Low Infra - Does not Return BBox of Answers

Use this mode when you only need answer text and confidence.

Output shape (high level):

• msg.payload = { "output": { "question": [ { "answer": "...", "score": 0.92 } ] } }
• Some models may also include cordinates when available.

Moderate Infra - OCR Free

Use this mode when OCR data is not available. The block will work directly from the image.

Output shape (high level):

• msg.payload = {"output": {"question": ["answer"]}}

Example

Input (msg.payload)

{
  "image_path": "documents/invoice.png",
  "questions": ["What is the invoice number?", "What is the total amount?"],
  "words_and_bboxes": [
    [[29, 23, 150, 45], "Invoice"],
    [[29, 50, 200, 70], "INV-001"]
  ]
}

Output (msg.payload)

{
  "output": {
    "What is the invoice number?": [
      { "answer": "INV-001", "score": 0.94, "bbox": [470, 100, 650, 150] }
    ],
    "What is the total amount?": [
      { "answer": "$500.00", "score": 0.91, "bbox": [220, 200, 350, 250] }
    ]
  }
}

Errors

When the block fails, it raises an error. Use a Catch block in your flow to handle failures and inspect the error payload.

Common mistakes

• Empty questions array: msg.payload.questions must contain at least one question.
• Missing image path: msg.payload.image_path is required and must point to a file on shared storage.
• Wrong OCR structure: If provided, msg.payload.words_and_bboxes must follow [[[x1, y1, x2, y2], "word"], ...].
• Threshold out of range: If you set a threshold, keep it between 0 and 1.

Best Practices

• Use clear, well-scanned document images for better answer extraction
• Formulate specific and precise questions (e.g., "What is the invoice number?" instead of "invoice?")
• Provide OCR data (words_and_bboxes) when available to improve accuracy
• Use OCR-free mode when OCR data is unavailable or preprocessing is difficult
• Start with a higher threshold (0.7-0.8) for critical applications, lower (0.3-0.5) for better coverage
• Use answer-with-coordinates mode when you need to highlight or verify answer locations visually
• Test with multiple questions in one call to reduce processing time
• Always validate answers in production applications, especially for critical data extraction
