Blocks & Flow EditorWindows
set value
Sets the value of a UI element such as an input field in a Windows application.
Sets the value of a UI element such as an input field in a Windows application.

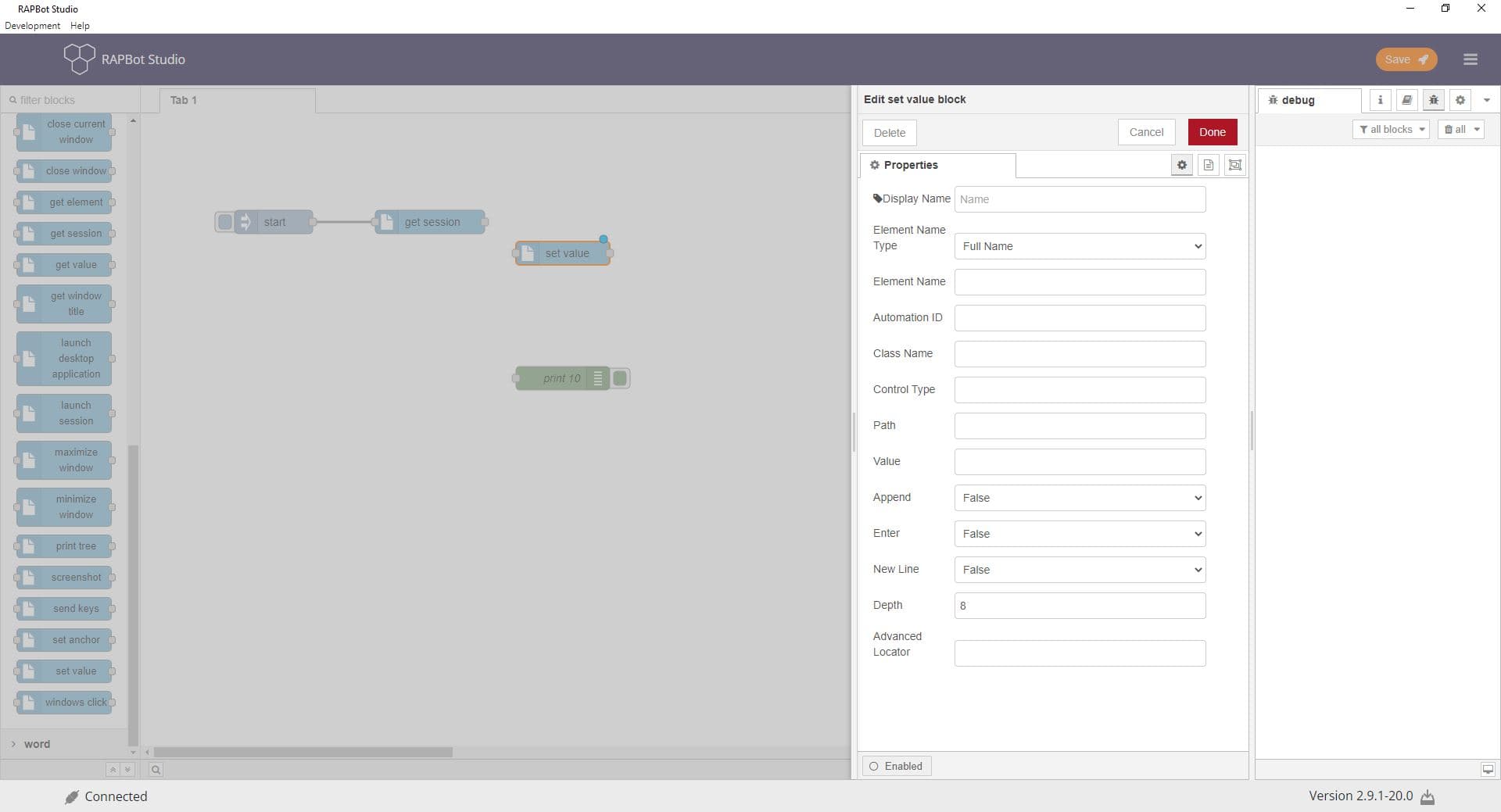

Configuration
| Field | Description |
|---|---|
| Display Name | Label on the block. |
| Element Name Type | Full Name, Sub Name, or Regex. |
| Element Name | Window or element title to target. |
| Automation ID | UI automation identifier. |
| Class Name | Window class identifier. |
| Control Type | UI control type. |
| Path | Element locator path. |
| Value | Data to set on the target element. |
| Append | Append to existing value instead of replacing (True/False). |
| Enter | Press Enter after setting the value (True/False). |
| New Line | Insert a new line after the value (True/False). |
| Depth | Element tree depth (default 8). |
| Advanced Locator | Custom locator string. |
Outputs
| Port | Description |
|---|---|
| Output 1 | Message passes through after the operation completes |
Notes
- Requires get session block earlier in the flow.
- Use Inspect.exe to find element identifiers.
