delete row

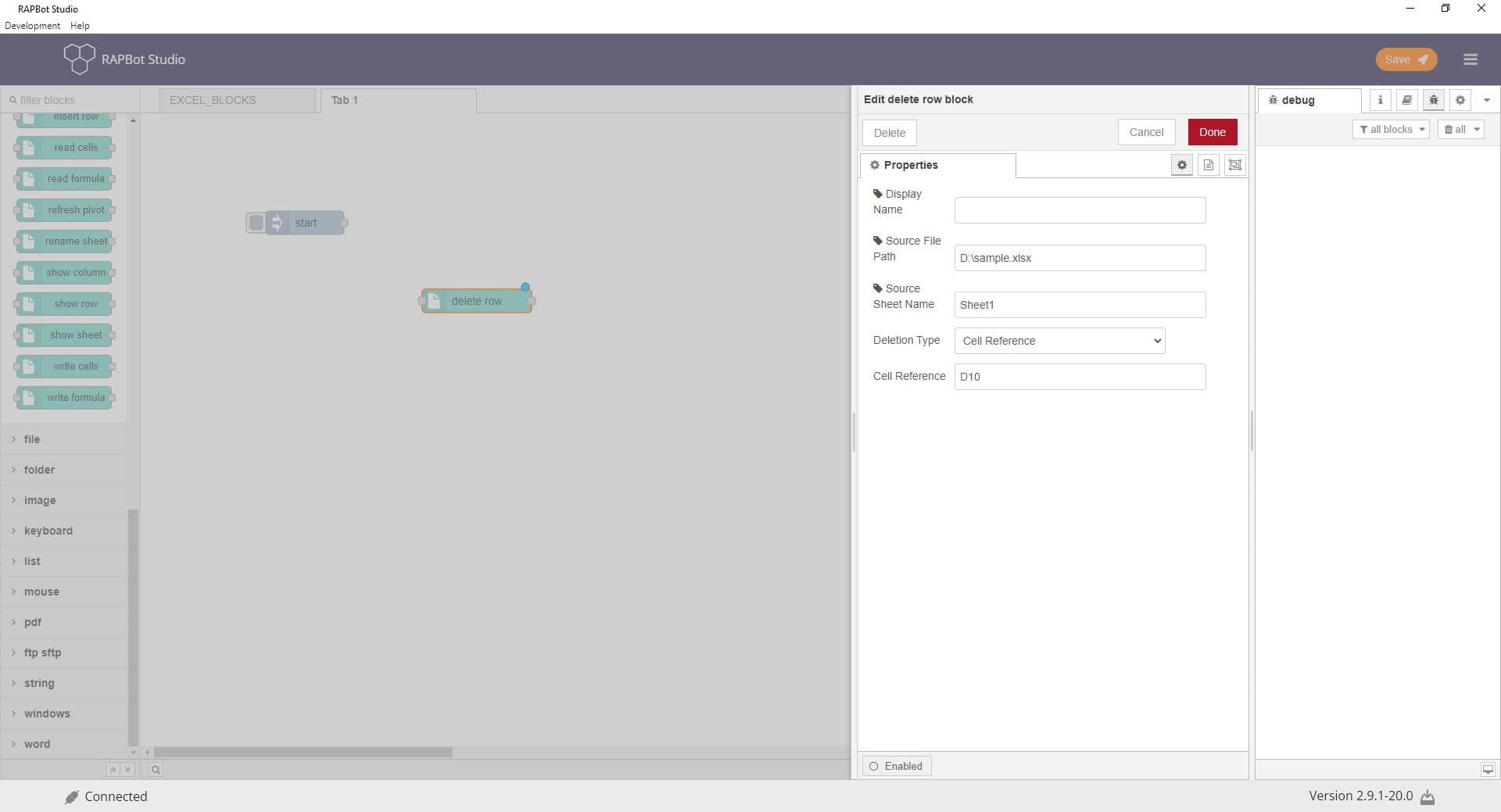

The **delete row** block removes rows by cell reference or filter criteria.

The delete row block removes rows by cell reference or filter criteria.

Configuration

Field	Description
Display Name	Optional label shown on the block in the canvas.
Source File Path	Full path to the Excel workbook file (.xlsx). Supports dynamic {variable} substitution from msg.
Source Sheet Name	Exact name of the worksheet tab (case-sensitive).
Deletion Type	Delete by cell reference or filter values.
Cell Reference	Cell or range: single cell (A2), range (A2:F2), entire row (2), or column (C).
Filter Column	Column number or header name for filter-based deletion.
Filters	Condition: Equals, Contains, Begins with, Greater than, Less than, etc.
Filter Value	Value to match for filter-based deletion.

Outputs

Port	Description
Output 1	Message passes through after the operation completes
