color cells

The **color cells** block applies background color to specified cells.

The color cells block applies background color to specified cells.

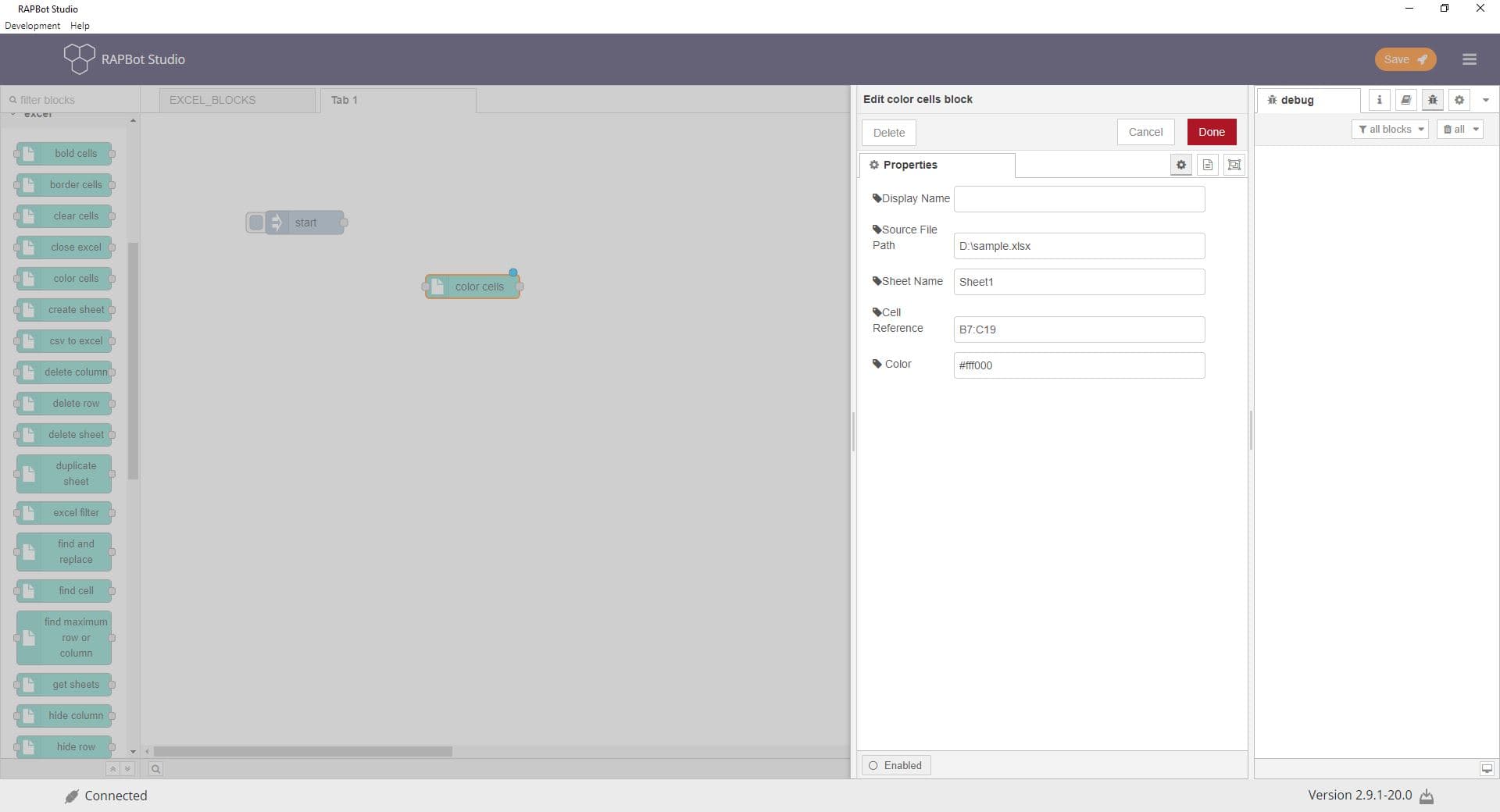

Configuration

Field	Description
Display Name	Optional label shown on the block in the canvas.
Source File Path	Full path to the Excel workbook file (.xlsx). Supports dynamic {variable} substitution from msg.
Source Sheet Name	Exact name of the worksheet tab (case-sensitive).
Cell Reference	Cell or range: single cell (A2), range (A2:F2), entire row (2), or column (C).
Color	Fill color for the cells.

Outputs

Port	Description
Output 1	Message passes through after the operation completes
