Blocks & Flow EditorBrowser
browser screenshot
The **browser screenshot** block captures a screenshot of the full page or a specific element.
The browser screenshot block captures a screenshot of the full page or a specific element.

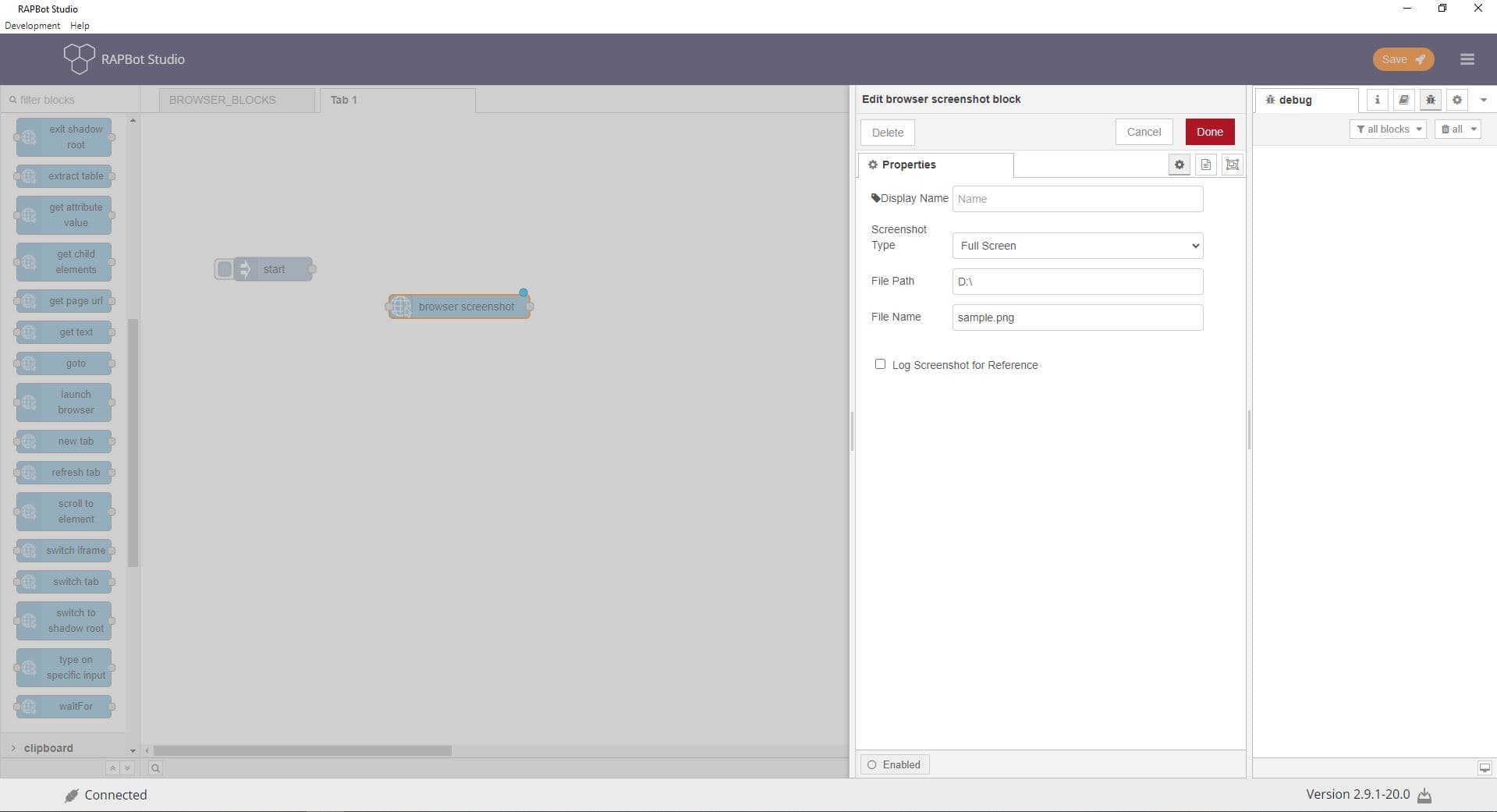

Configuration
| Field | Description |
|---|---|
| Display Name | Optional label shown on the block in the canvas. |
| Screenshot Type | Full Screen — entire page. Element — specific element (shows selector fields). |
| Selector | Choose XPath or CSS Selector. XPath navigates HTML/XML structure; CSS Selector locates elements by pattern (Selenium syntax). |
| Selector Value | The selector expression — copy and paste from inspector or XPath Picker. |
| Selector Index | When multiple elements match, pick by index. Index starts at 1 (not 0). |
| Timeout | Maximum wait time in seconds for the element to appear (default 30). Supports decimals (e.g. 0.3). |
| Action Type | Web Element — interact with visible HTML. Javascript — access hidden or shadow-DOM elements. |
| Add Selector | Type or paste an XPath and press Enter to add it to the selector list. |
| Pick XPath | Use the XPath Picker Chrome extension: click an element on the page to capture its XPath, then verify via the dropdown. |
| File Path | Directory path to save the screenshot. |
| File Name | Filename for the screenshot image. |
| Log Screenshot for Reference | When enabled, logs the screenshot path for Orchestrator reference. |
Outputs
| Property | Description |
|---|---|
msg.payload | Path to saved screenshot file |
Notes
- Browser operation blocks require launch browser to be used earlier in the flow.
